HCW Flap Barrier Gate Entrance Pedestrian Access Control Turnstile Stainless For Office Buildings

محل منبع چین
نام تجاری HCW
گواهی CE/ISO 9001
Model Number CW592
مقدار حداقل تعداد سفارش 2 عدد
قیمت قابل مذاکره
جزئیات بسته بندی مورد چوبی
زمان تحویل 5-8 روز کاری
شرایط پرداخت t/t
قابلیت ارائه 100 قطعه در روز

برای نمونه و کوپن رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

وی چت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
Brand name HCW مدل محصول CW592
جنس شاسی 304 فولاد ضد زنگ اندازه شاسی 1200*300*980 میلی متر
ضمانت 1 سال گواهی ISO 9001/CE
ولتاژ عرضه AC220V±10٪، 50HZ±10٪ HZ موتور موتور بدون برس DC
رطوبت نسبی ≤90٪ بدون فشرده سازی پرتو مادون قرمز 4 جفت
جنس بال درب پلکسی گلاس 15 میلی متری سرعت در حال اجرا ۳۰ تا ۴۰ نفر در دقیقه
برجسته کردن

stainless steel flap barrier turnstile,pedestrian access control turnstile,office building entrance turnstile

,

pedestrian access control turnstile

,

office building entrance turnstile

پیام بگذارید
توضیحات محصول
HCW Flap Barrier Gate Entrance Pedestrian Access Control Turnstile Stainless For Office Buildings
Product Attributes
Attribute Value
Brand name HCW
Product model CW592
Chassis material 304 stainless steel
Chassis size 1200*300*980mm
Warranty 1 Year
Certificate ISO 9001/CE
Supply voltage AC220V±10%,50HZ±10% HZ
Motor DC brushless motor
Relative humidity ≤90% non-condensing
Infrared beam 4 pairs
Door wing material 15mm plexiglass
Running speed 30~40 people/minute
Product Description

The HCW CW592 represents a cutting-edge waterproof turnstile gate solution designed for intelligent access control applications. Built with a robust 304 stainless steel chassis (1200*300*980mm) and durable 15mm plexiglass door wings, this turnstile combines strength with modern aesthetics.

Specifications
Brand name HCW
Product model CW592
Chassis material 304 stainless steel
Chassis size 1200*300*980mm
Warranty 1 Year
Certificate ISO 9001/CE
Supply voltage AC220V±10%,50HZ±10% HZ
Motor DC brushless motor
Relative humidity ≤90% non-condensing
Infrared beam 4 pairs
Door wing material 15mm plexiglass
Running speed 30~40 people/minute
Input interface 100ms low-level pulse signal
Advantages
  • All-Weather Security Solution - The face recognition turnstile waterproof design with IP42 access control turnstile gate rating ensures reliable operation in various weather conditions, making it perfect for both indoor and outdoor installations.
  • Multi-Technology Access Integration - Supporting barcode, swipe access, and face recognition access control options, it offers flexible authentication methods to suit diverse security requirements.
  • High-Efficiency Traffic Flow - As a 40 persons/minute office security turnstile, it maintains smooth pedestrian movement (30-40 people/minute) without compromising security, ideal for high-traffic corporate and public spaces.
  • Premium Motor Performance - The brushless motor barrier turnstile gate mechanism delivers silent, maintenance-free operation with extended lifespan, reducing long-term ownership costs.
  • Smart Connectivity & Customization - Featuring standard RS485/RS232 interfaces and customizable OEM options, it seamlessly integrates with existing security systems while offering future-proof upgrade possibilities for evolving security needs.
Applications
  • Corporate Campuses & Smart Offices - The 40 persons/minute office security turnstile excels in modern workplaces with its swipe access and face recognition access control capabilities. Its sleek 15mm plexiglass door wings and stainless steel chassis blend with professional environments while providing robust security against unauthorized access.
  • Transportation Hubs & Public Venues - Ideal for airports and metro stations, this barcode supported turnstile gate efficiently handles high-volume traffic (30-40 people/minute). The face recognition turnstile waterproof design ensures reliable operation in various weather conditions, while 4 pairs of infrared beams prevent tailgating.
  • High-Security Facilities - With IP42 access control turnstile gate protection and RS485/RS232 connectivity, it's perfect for data centers and government buildings. The brushless motor barrier turnstile gate offers silent, maintenance-free operation for 24/7 security needs in sensitive locations.

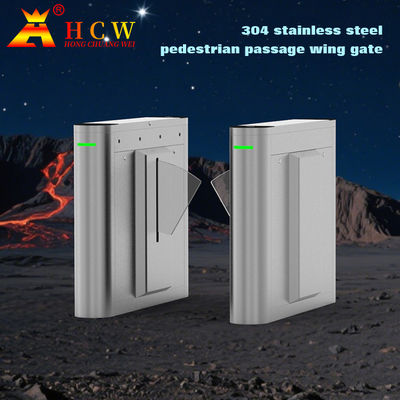

HCW Flap Barrier Gate Entrance Pedestrian Access Control Turnstile Stainless For Office Buildings 0

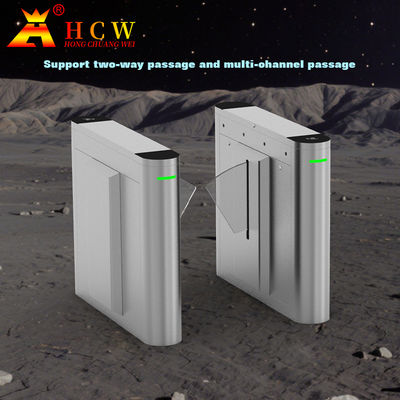

HCW Flap Barrier Gate Entrance Pedestrian Access Control Turnstile Stainless For Office Buildings 1

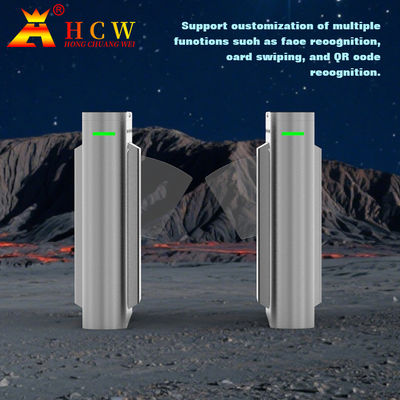

HCW Flap Barrier Gate Entrance Pedestrian Access Control Turnstile Stainless For Office Buildings 2

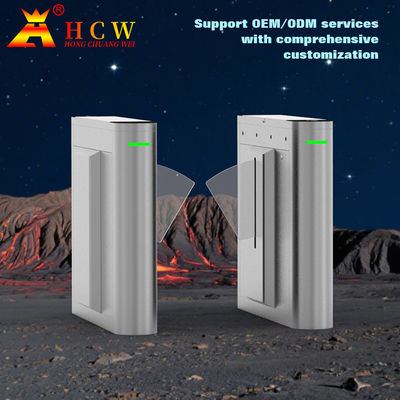

HCW Flap Barrier Gate Entrance Pedestrian Access Control Turnstile Stainless For Office Buildings 3
