HCW Biometric Full Height Turnstile Gate Bi Directional 304SS Security With Pedestrian Control System
| محل منبع | چین |
|---|---|
| نام تجاری | HCW |
| گواهی | CE/ISO 9001 |
| شماره مدل | cw802 |
| مقدار حداقل تعداد سفارش | 2 قطعه |
| قیمت | قابل مذاکره |
| جزئیات بسته بندی | مورد چوبی |
| زمان تحویل | 5-8 روز کاری |
| شرایط پرداخت | t/t |
| قابلیت ارائه | 100 قطعه در روز |
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| Brand name | HCW | شماره مدل | cw802 |
|---|---|---|---|
| مواد تولیدی | 304 فولاد ضد زنگ | اندازه محصول | 1500*1500*2300mm |
| ضمانت | 1 سال | گواهی | ISO 9001/ce |
| موتور | 90 درجه حرکت ارتفاع کامل | دمای کار | -25℃~+70℃ |
| رابط ارتباطی | RS232/RS485 | ماده بال | لوله استیل ضد زنگ |
| عرض کانال | 600 میلی متر | سرعت در حال اجرا | 40 نفر در دقیقه |
| برجسته کردن | biometric full height turnstile gate,304SS security turnstile gate,bidirectional pedestrian control system,304SS security turnstile gate,bidirectional pedestrian control system |
||
توضیحات محصول
HCW Biometric Full Height Turnstile Gate Bi Directional 304SS Security With Pedestrian Control System
Product Description
The HCW CW802 is a reliable full-height solution designed for secure access control in high-traffic areas. Built with durable SS304 stainless steel, this full height turnstile gate with LED indicators combines modern design with long-lasting performance.
With a passage width of 600mm and a capacity of up to 40 people per minute, it ensures smooth flow while maintaining strict entry management. The advanced motor system provides low noise operation and a stable 90° rotation, creating a comfortable user experience.
It also features an automatic reset function to enhance safety and prevent unauthorized access. Engineered to perform under extreme temperatures from -25℃ to +70℃, the CW802 guarantees dependable service with a lifespan of over 5 million cycles. Certified with ISO 9001 and CE, it represents an excellent balance of quality and affordability.
Specifications
| Brand name | HCW |
|---|---|
| Model number | CW802 |
| Product material | 304 stainless steel |
| Product size | 1500*1500*2300mm |
| Warranty | 1 Year |
| Certificate | ISO 9001/CE |
| Motor | 90°full height movement |
| Working temperature | -25℃~+70℃ |
| Communication interface | RS232/RS485 |
| Door wing material | Stainless steel pipe |
| Channel width | 600mm |
| Running speed | 40 people/minute |
| Normal service life | 5 million times |
Key Advantages
1. Stable Power Supply
Operates on AC220V±10%, 50/60HZ, ensuring consistent performance across diverse environments.
2. Accurate Flow Management
Equipped with an integrated counting function to provide real-time pedestrian statistics for efficient access control.
3. Safe Power-Off Mechanism
The gate unlocks automatically during power failures, allowing free passage in emergencies to ensure user safety.
4. Flexible Operating Modes
Features programmable gate control supporting both one-way and bidirectional passage, easily adaptable to project requirements.
5. Seamless Integration
Designed with a customized installation interface, it is compatible with magnetic cards, barcode cards, ID cards, IC cards, and other access technologies.
Applications
High-Security Facilities - Its full-height, robust 304 stainless steel construction and strict single-passage design are ideal for preventing unauthorized entry and tailgating at corporate buildings, factories, data centers, and laboratories, ensuring only credentialed personnel gain access.
High-Traffic Transportation Hubs - With a capacity of 40 people per minute, this turnstile efficiently manages large pedestrian flows in metros, airports, and train stations, enabling smooth entry and exit while maintaining reliable ticket or access control.
Integrated Access Control Sites - Featuring versatile integration with card and biometric systems, it is perfectly suited for offices, government buildings, and stadiums. This allows for seamless credential verification and includes a safe power-off unlock feature for emergency egress.

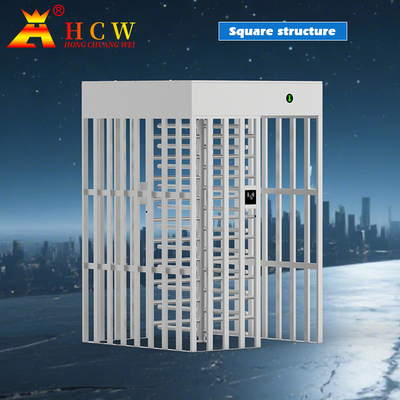

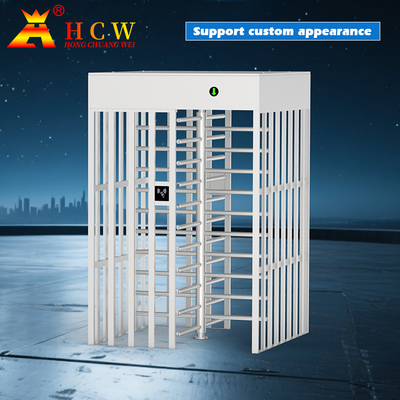

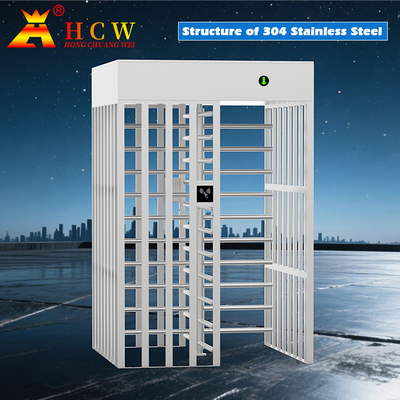

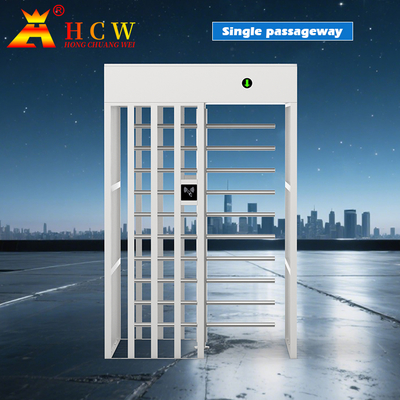

Product Images
