HCW High Capacity Swing Barrier Turnstile with 1S Open/Close Time and 4 Million Times Service Life for Pedestrian Access Control
| Place of Origin | China |
|---|---|
| نام تجاری | Hongchuangwei |
| گواهی | CE/ISO 9001 |
| Model Number | CW401 |
| Minimum Order Quantity | 2 |
| قیمت | قابل مذاکره |
| Packaging Details | wood cases |
| Delivery Time | 4-7 working days |
| Payment Terms | T/T |
| Supply Ability | 1000 pieces weekly |
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| Passing speed | 30-40person/min | Power supply | AC220V±10%,50±10Hz |
|---|---|---|---|
| Material | SUS 304 | working environment | -25℃ to 70℃ |
| Dimension | 1200 * 280 * 990mm | open/ close time | 1S |
| Relative humidity | ≤90% no condensation | Normal service life | 4 million times |
| برجسته کردن | High Capacity Swing Barrier Turnstile,1S Open/Close Time Pedestrian Swing Gate,4 Million Times Service Life Access Control Turnstile,1S Open/Close Time Pedestrian Swing Gate,4 Million Times Service Life Access Control Turnstile |
||
توضیحات محصول
HCW High Capacity Swing Barrier Turnstile
Bridge type swing gate single/two-way pedestrian swing turnstile with fast open/close time and stable performance, allowing up to 40 persons per minute.
Key Features
- Constructed with thickened steel, customizable design with quality assurance - durable, waterproof and rustproof

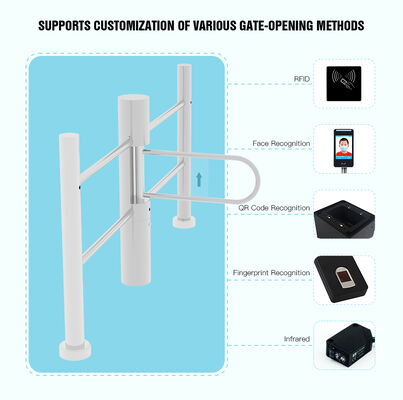

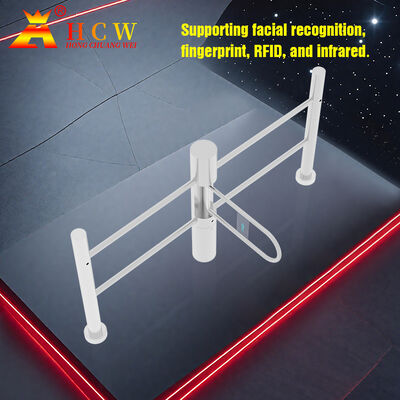

- Supports multiple recognition methods: face recognition, fingerprint recognition, QR code scanning, document recognition
- Anti-collision function with automatic swing arm locking when no opening signal is detected
- Fault prompt and self-check system for easier maintenance
- Brushless motor for extended operational life
- Configurable for one-way or two-way traffic flow
- Ideal for smart community system solutions
Face Recognition Option
Enhances security and prevents identity impersonation through face collection, detection, feature extraction and comparison.
Technical Specifications
| Product Model | CW401 |
|---|---|
| Voltage | AC220V±10%, 50HZ±10% HZ |
| Working Temperature | -25℃ to 70℃ |
| Relative Humidity | ≤90% (no condensation) |
| Motor Type | Brushless Motor |
| Rated Power | 40W |
| Input Control Signal | Switch value (standard configuration does not include RS232, RS485) |
| Throughput Speed | 30-40 persons/minute |
| Infrared Beam | 1 Pair |
| Trouble-free Operations | 2 million times |
| Average Lifespan | 3 million times |

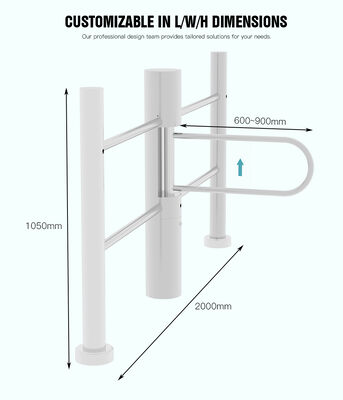

| Channel Width | 600mm-1600mm |
| Door Wing Material | ￠25mm Stainless steel |
| Product Size | ￠200mm × height 1050mm |
| Channel Frame | National standard 1.5mm 304 stainless steel |
| Package Weight | Approx. 25 KG (single side road) |
Product Images
