HCW Stainless Steel Full Height Turnstile with Programmable Control Power Off Unlocking and Durable Construction
| محل منبع | شنژن، چین |
|---|---|
| نام تجاری | Hongchuangwei |
| گواهی | CE |
| شماره مدل | CW804 |
| مقدار حداقل تعداد سفارش | 1 |
| قیمت | قابل مذاکره |
| جزئیات بسته بندی | موارد چوبی |
| زمان تحویل | 7-15 روز کاری |
| شرایط پرداخت | T/T |
| قابلیت ارائه | 100 عدد در روز |
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| برنامه | در فضای باز و سرپوشیده | منبع تغذیه | AC 220V/110V 10 ٪ 50/60MHz |
|---|---|---|---|
| فروتنی نسبی | <95 ٪ ، بدون تراکم | وزن | 270 کیلوگرم |
| عمر خدمات | 6 میلیون بار | جهت ترافیک | ترافیک یک طرفه یا دو طرفه |
| طول نرده | 600 میلی متر | ||
| برجسته کردن | Programmable Control Full Height Turnstile,Power Off Unlocking Security Gate,Durable Turnstile Gate,Power Off Unlocking Security Gate,Durable Turnstile Gate |
||
توضیحات محصول

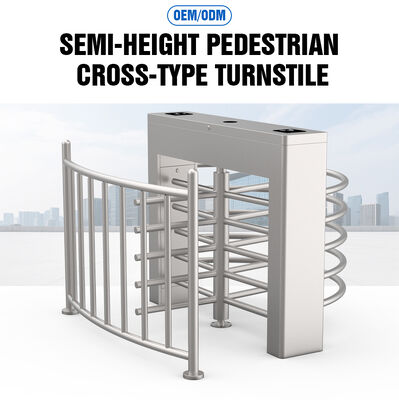

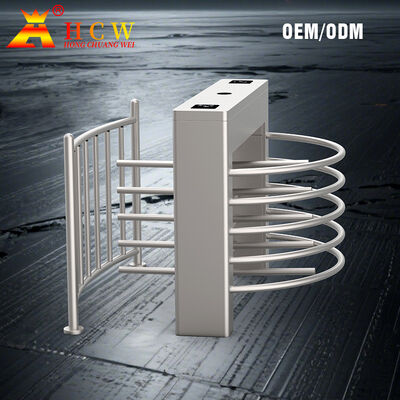

HCW Full Height Turnstile Stainless Steel Security Gate
Programmable One Way or Two Way Control with Power Off Unlocking
The HCW Full Height Turnstile is a durable, high-security stainless steel gate featuring programmable access control and fail-safe power-off unlocking. Designed for maximum security and reliability in demanding environments.
Key Features

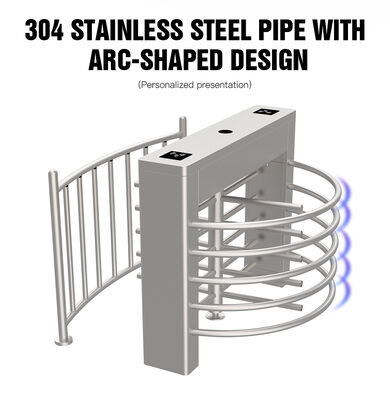

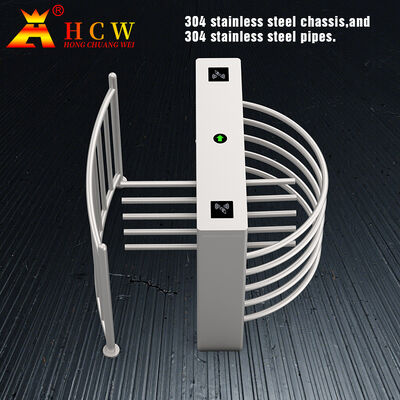

- Constructed with SUS304 stainless steel for superior durability and corrosion resistance
- Luxurious appearance with sturdy, long-lasting construction
- Customizable installation interface compatible with magnetic cards, barcodes, and ID card readers
- Smooth operation with soft buffering and low noise operation
- White heavy zinc acid electroplating for rust-proof protection
- Programmable control with multiple working modes (one-way or two-way)
- Power-off unlocking feature for emergency access
- Standard external electrical interface for easy system integration
- Sensitive impact detection for enhanced safety
- Designed for 10 million opening/closing cycles
- Automatic self-locking after passage
Applications

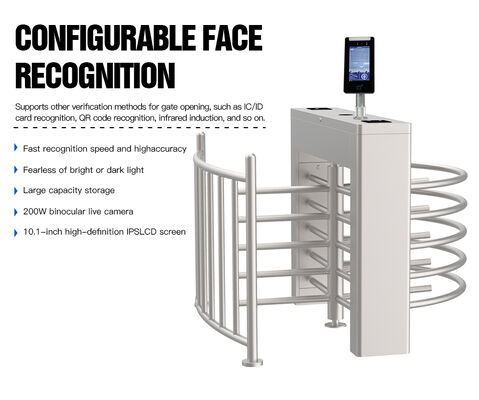

Ideal for railway stations, banks, high-end clubs, offices, gyms, swimming pools, and other secure areas. Supports RFID, fingerprint, and facial recognition systems. Can be integrated with infrared detectors and temperature controllers for various environments.
Technical Specifications
| Model | CW804 |
|---|---|
| Power Supply | AC220+10% 50HZ |
| Power Consumption | Static <50W, Dynamic <100W |
| Rotation Direction | One-way or two-way |
| Traffic Direction | One-way or two-way |
| Communication Interface | 232, RS485 |
| Components | Standard case, 90° revolving door, control panel, movement, motor |

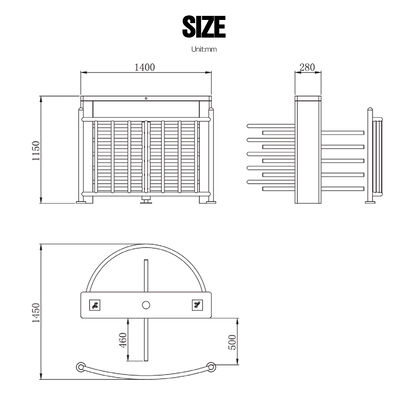

| Dimensions | 1400×1450×1150mm (Chassis: 1400×280×1150mm) |

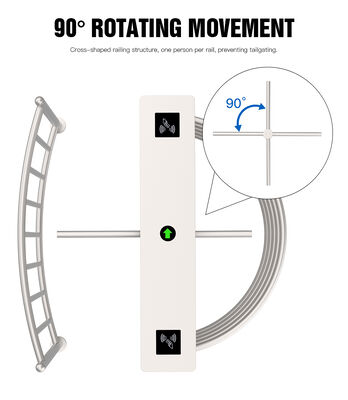

| Barrier Length | 600mm (90° barrier) |
| Swing | ≤600mm |
| Opening Time | Not adjustable |
| Capacity | 20 persons/minute |
| Operating Temperature | -25℃ to +70℃ (humidity ≤95%) |
| Auto Reset | Adjustable time limit for automatic locking |
Product Images
