HCW 8 Pairs Infrared Detection Sensors Swing Barrier Turnstile Gate,Fast Speed 30-60 Person/Minute Pedestrian Access Control Turnsti,5 Million Times Life Span Swing Turnstile Gate
| محل منبع | شنژن، چین |
|---|---|
| نام تجاری | Hongchuangwei |
| گواهی | CE/ISO 9001 |
| شماره مدل | CW406 |
| مقدار حداقل تعداد سفارش | 2 عدد |
| قیمت | قابل مذاکره |
| جزئیات بسته بندی | کیس چوبی |
| زمان تحویل | 5-8 روز کاری |
| شرایط پرداخت | T/T |
| قابلیت ارائه | 100 عدد در روز |
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| نام | دروازه گردان تاب | متریال کابینت | فولاد ضد زنگ 304 |
|---|---|---|---|

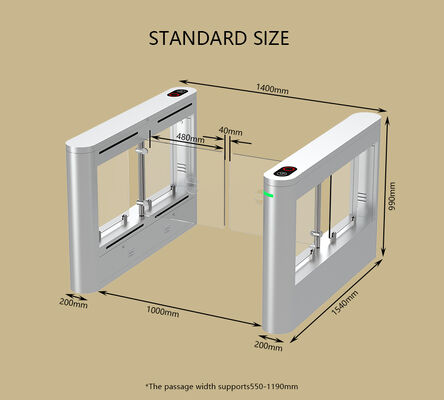

| جنس بال درب | اکریلیک | اندازه محصول | 1540*200*990 میلی متر |
| موتور | موتور براشلس | سیگنال کنترل ورودی | مقدار سوئیچ، RS232 |
| سرعت دویدن | 30 تا 60 نفر در دقیقه | طول عمر | 5 میلیون بار |
| برجسته کردن | infrared detection swing barrier turnstile,high-speed pedestrian access turnstile gate,long lifespan swing turnstile gate,high-speed pedestrian access turnstile gate,long lifespan swing turnstile gate |
||
توضیحات محصول
HCW 8 Pairs Infrared Detection Sensors Swing Barrier Turnstile Gate
The HCW CW406 Swing Barrier Turnstile Gate features a high-end anti-collision solution for pedestrian access control. Constructed with SS304 stainless steel cabinet, this system incorporates a 60W brushless motor and 8 pairs of infrared detection sensors for efficient anti-tailgating protection. The system automatically locks when unauthorized access is attempted, withstanding impacts up to 120Nm, while meeting fire safety requirements with automatic power-off release.
Key Features
- Constructed with durable 304 stainless steel cabinet and standard acrylic swing arm
- Supports multiple access control systems including card readers, biometrics, QR codes, and facial recognition
- Advanced anti-tailgating technology with 8 infrared sensors
- Automatic locking mechanism withstands 120Nm impact force
- Fire safety compliant with automatic power-off release
- Flexible operation modes including always open/closed and bidirectional passage
- Comprehensive safety features including anti-pinch and anti-shock functions
- LED direction indicators and audible/visual alarms
- Remote management and offline operation capabilities
Technical Specifications
| Product Number | CW406 |
|---|---|
| Voltage | AC220V±10%, 50HZ±10% |
| Working Temperature | -25℃ to 70℃ |
| Motor Type | Brushless Motor (60W) |
| Throughput | 30-60 persons/minute |
| Infrared Sensors | 8 pairs |
| Channel Width | 600mm-1190mm |
| Construction | 1.0-1.3mm 304 stainless steel frame |
| Weight | Approx. 65kg (single lane) |
Applications
Ideal for high-traffic pedestrian control in shopping malls, office buildings, residential complexes, schools, and other locations requiring secure access management.
Product Images

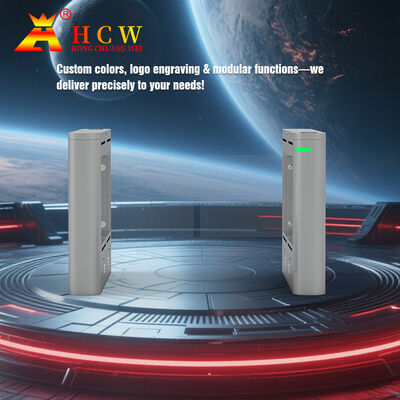

Front View

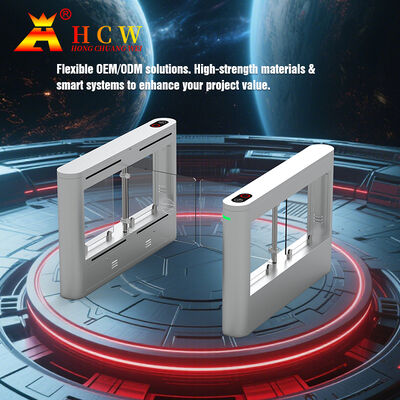

Side View
In Operation
Commercial Installation
