HCW Automatic Turnstile Gate with High Throughput 30~40 people/minute Swing Gate,3 Million Trouble-Free Runs Pedestrian Gate

محل منبع شنژن، چین
نام تجاری Hongchuangwei
گواهی CE
شماره مدل CW436
مقدار حداقل تعداد سفارش 2
قیمت قابل مذاکره
جزئیات بسته بندی موارد چوبی
زمان تحویل 7-15 روز کاری
شرایط پرداخت T/T
قابلیت ارائه 100 عدد در روز

برای نمونه و کوپن رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

وی چت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
منبع تغذیه ac220v ± 10 ٪ ، 50Hz مواد شاسی فولاد ضد زنگ 304
عرض گذر 600 ~ 750mm (سفارشی سازی موتور DC Brushless
سفارشی سازی رنگ پشتیبانی کنید OEM/ODM پشتیبانی کنید
برجسته کردن

automatic turnstile gate with high throughput,swing gate pedestrian access control,trouble-free automatic turnstile gate

,

swing gate pedestrian access control

,

trouble-free automatic turnstile gate

پیام بگذارید
توضیحات محصول
HCW Automatic Turnstile Gate with High Throughput 30~40 people/minute Swing Gate
Product Overview

HCW CW436 Child Safety Swing Gate - specifically designed for educational environments. Constructed with premium 304 stainless steel, this solution provides robust pedestrian management for high-traffic school areas requiring strict safety protocols, while enhancing campus security with hygienic, durable access control.

Core Technical Features
Stainless Steel Safety Materials
  • Full-body 304 stainless steel: Excellent corrosion, rust, and oxidation resistance, maintaining appearance in various weather conditions

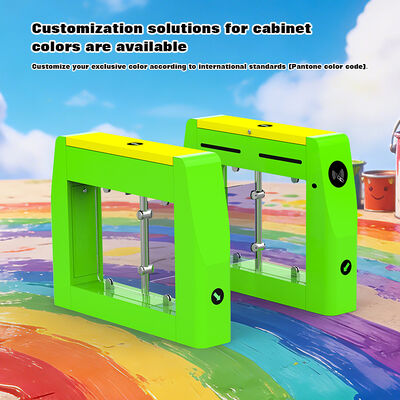

  • Customizable colors: Environmentally friendly paint options available to match campus aesthetics without health risks
Comprehensive Safety Protection
  • Low-power anti-pinch design: Automatically stops or rebounds when encountering obstacles, complying with national safety standards
  • Multi-sensor protection: Infrared detectors with optional voice alarm integration prevent tailgating and unauthorized access
  • Emergency free passage: Automatic unlocking during emergencies ensures unobstructed evacuation routes
Superior Structural Design
  • Enhanced load-bearing capacity: Reinforced impact resistance withstands active student environments
  • Ultra-long service life: DC brushless motor supports over 1 million operations, ensuring peak reliability
Intelligent Management
  • Flexible identification: Supports campus cards, facial recognition, and fingerprint scanning with real-time attendance data recording
  • Worry-free support: Standardized campus system interfaces with 24-hour response and long-term warranty
Application Scenarios
  • School main entrances/exits (elementary schools, middle schools, kindergartens)
  • Dormitories, libraries, cafeterias requiring access control
  • Temporary gymnasium and auditorium checkpoints
Technical Specifications
Product Number CW436
Voltage AC 220V ±10%, 50Hz ±10%
Operating Temperature -25℃ to 70℃
Humidity Range 5% to 80%
Rated Power 60W
Throughput 30-40 people/minute
Infrared Beams 6 pairs
Durability 5 million operations (average lifespan)
Channel Width 600-750mm
Swing Arm Material 10mm acrylic
Dimensions 1200×220×900mm (single unit)
Frame Material 304 stainless steel, baked paint
